Prefabrication Housing

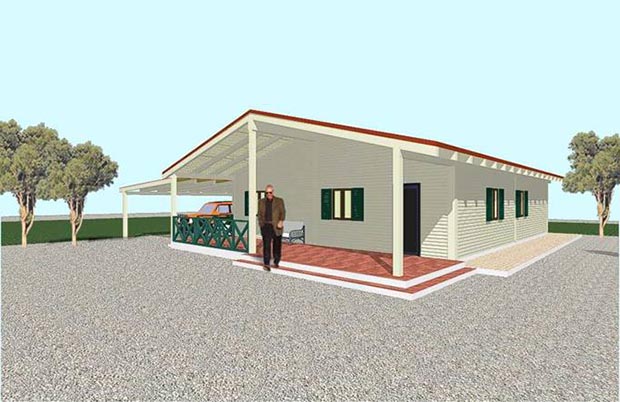

Prefabrication House

Project prefabrications housing on developing countries

 For Informations : prmarketing@virglio.it

 CONSTRUCTIVE TECHNICAL EXAMPLE



Inside the establishments of the firm takes form the whole productive cycle of the manufactured articles, thanks to the numerical control technologies, to the center cut for the wood, to the modern systems of treatment and the experience of the own maestranzes and specialized technicians, the everything supported from his/her own inside technical office furnished of the most modern softwares of planning and systems multimediali

 CONSTRUCTIVE ELEMENTS

( Form – ability of the materials)

 The prefabricated in question it is fit to satisfy the requisite technical dimensional following brought and the relative quotations will include besides the real structural parts and the equipments specified better in the chapters that follow.

 The total dimensions as surface, inside divisions, corridors and places hygienic services, are conforming to the seedlings brought on the nses. you draw in enclosure, in line with the nses. you modulate standard and however they form the solutions from us proposed.

 Walls

 Formed from elements interchangeable actions to the realization or composition of any prefabricated. The elements of wall are realized with strong carrying frameworks in wood and are connected among them from complete uppercuts of metallic hooks of fixing (patented),with a perfect conjunction of the panels among them and of the trusses to the structure perimetrale of base, constituent thing Ì a monolithic assemblage.

 Uppercuts: in thick wood fir, complete of special metallic hooks for the union of the panels among them and of the trusses to the root perimetrale of base.

 WALLS PERIMETRALI EXTERIOR

 Constitute from elements of structure  of both the sides with material from covering, The external side is finished up with base wood panels type LVL 9.5 ready mms to receive plaster in work; the inside side is already finished up with base

Wood panels type enfeebled shade ivory sp. 4 mms.

The panels of covering are fixed to the carrying framework through procedure of  stiking and pressed. , total panel ca 70 mms.
Isolation external walls: in the intercapedine of the external walls the coibente is set constituted by panels of expanded polistirene sinterizzato EPS sp. 55 mms.

External walls:

1. Carrying structure in thick wood of fir
2. Panel in wood LVL
3. Isolation
4. Faesite

barrier with impending mantle of coverage in plate grecata color makes a will of dark isolated, with relative

 INSIDE DIVIDING WALLS:

 Are realized by structure to nest of bee as the external walls, tamburate of both the sides in panels of enfeebled of wood warnished in shade ivory sp. 4 mms. In the interspace the coibente is set by panels of expanded polistirene EPS. Thickness total panel 43 mms.

Inside walls system :

1. Faesite

2.  Isolation

3.  Faesite

 COVERING

 To it doubles stratum with 30 inclination%, formed by trusses  in wood of thick fir assembled with spiked plates (type Gang-Nail), set to regular intervals of 1,20 ms. The system of anchorage of the trusses to the remaining structure of the barrier with impending mantle of coverage in plate grecata color makes a will of dark isolated, with relative

building will  performed with metallic stirrups. On the trusses a plot seed-flood of tables will be set by 25 mms .

 CELLING

Is constituted by panels (type Armstrong) in mineral fiber from 600x600x14 suits of structure a wool layer of glass is stretched. 60 mms.

FIXTURE

 Are on the relationship I air illuminating suitable to how much in demand. You specifies that in the closets, redemptions, stores, corridors, entries and services , has not been considered the relationship to lichting. They will be of the type in aluminum or in PVC to one or two shutters with external blinds in PVC and provisions of hardware. All the looms and the controtelais will be in aluminum or PVC, and the glasses will be of the type termopan 4/9/4.

Said windows you/they are furnished complete of gaskets of estate fixed in the wisecrack of the shutters in way the entrance of the air.

 Door principal of entry:

They will be of the blind type or to glasses, to a shutter of solid construction, with loom in aluminum or PVC. Complete of zippers, locks type Yale and handles.

 Inside doors:

Realized in wood tamburate on both the façades with the same covering of the inside walls. The  measures will be: width 65-75 xes height of cm. 200 .

 PANELS SOLARS (OPTIONAL)

 The solar cells have an energetic output that overcomes 16% and I is guarantee of an annual energetic .
With the purpose to guarantee the necessary protection against the more adverse climatic conditions, the cells they are englobed among a coverage of tempered glass and a film of EVA (etilacetato of vinyl) and you subsequently seal from a pellicle.
The loom dTalluminio anodized black and endowed with a further covering it assures a resistance to the corrosion and a long useful life. In combination with the cells of dark blue color  confers to the coverages a very pleasant aesthetics

The strong loom is able to withstand the more adverse climatic conditions.

 BATTERY

The batteries FIAMMs are projected to optimize the quality and the affi dabilità of the disbursement of energy, minimizing the costs of exercise. The reached results have allowed FIAMM to consolidate in the time its image, strengthening for a long time a synonymous mark of performances and affi dabilità: an ideal solution for every application.

 INVERTER

 The series of inverter Steca AJ mainly distinguishes him for the multiplicity of the available classes of power and for the different tensions of entry CC.

 In this way, it is possible to choose the optimal inverter for every application. In the Steca AJ, the cables for the connection of the battery and the use are premontati and they facilitate the installation of the instrument. The automatic formality of stand-by reduces notably the autoconsumo of the inverter. The excellent resistance to the overloads of the inverters Steca AJ allows to also use critical uses without the least problem.

 REGULATOR OF POSITION

 The regulator of position sends signals (1 kHz on 00 bauds) that you/they are modulated on the line CC and received by the relay of control.

 These signals contain information on the state of position (SOC) of the battery, The regulator introduces five different formalities of operation that can be planned by five different positions jumper

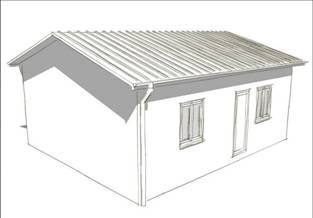

 PLAN EXAMPLE HOUSE

-BACK PROSPECTUS -SIDE PROSPECTUS- PRINCIPAL PROSPECTUS
